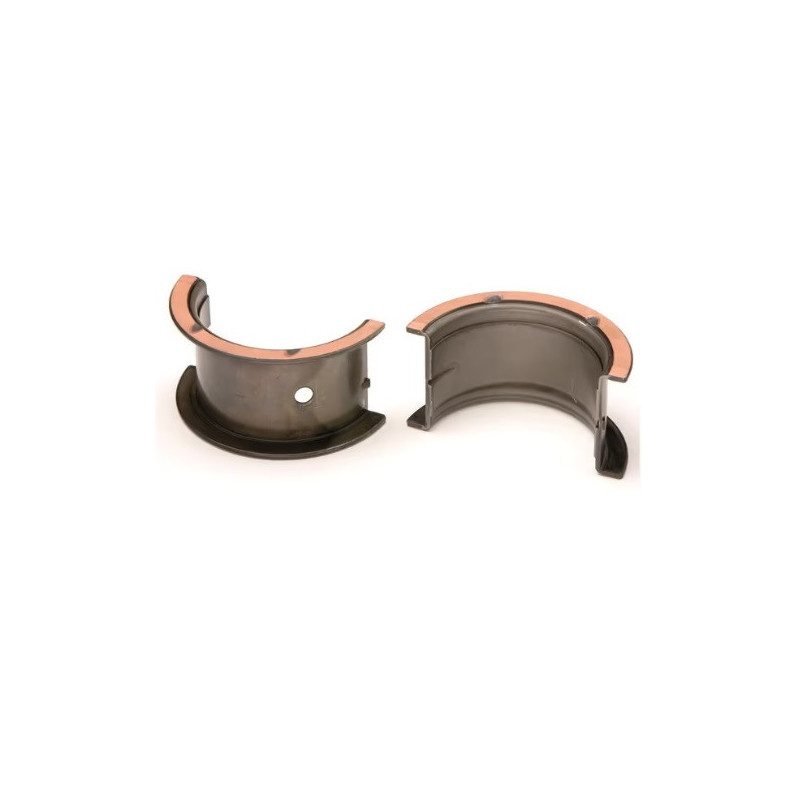

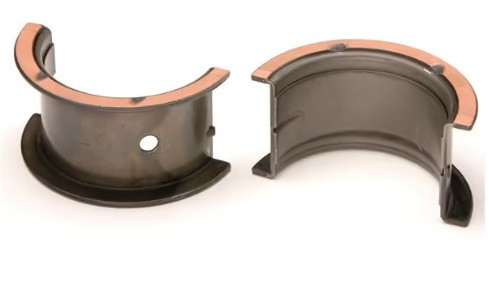

Standard ACL connecting rod bearings for HONDA /ACURA B16A2

Standard ACL connecting rod bearings for HONDA /ACURA B16A2

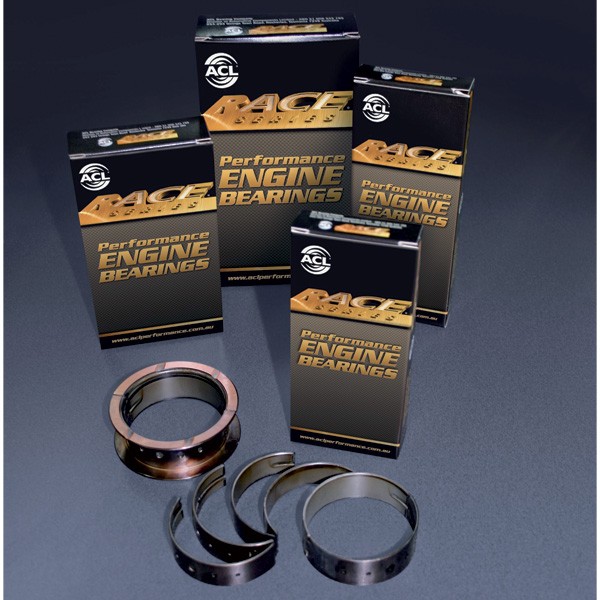

ACL Trimetal bearings (hardened steel + copper + nickel) are designed for racing use. They reduce friction, improve operating temperatures and optimise oiling.

The ACL-4B1946H-STD model is specially designed for HONDA /ACURA engines, offering perfect tolerance for precise connecting rod adjustment.

These bearings are offered in STD rib and also in repair rib.

Specifications :

Part number: ACL-4B1946H-STD

Tolerance: Standard size (STD)

Material: Tri-metal alloy (copper, lead, tin)

Recommended use: Motorsport, competition, engine preparation

Advantages : Increased wear resistance, optimum heat dissipation, precise fit

Dimensions:

Maximum overall length: 19.50 mm

Minimum axle size: 44.980 mm

Maximum axle size: 45.00 mm

Minimum tunnel size: 48.00 mm

Maximum tunnel size: 48.024 mm

Max wall to crown: 1,504 mm

Minimum vertical oil clearance:

Max vertical oil clearance:

Compatibility :

HONDA /ACURA

- A18A, ES, ET, A20A 1829cc, 1955cc Inline 4

- B16A 1595cc Inline 4

- B17A1, B18A1, B18B1, B18B2 1678cc/1834cc Inline 4

- B18A, B20A SOHC only 1834cc/1958cc Inline 4

- B20B, B20Z 1972cc Inline 4

- F18B, F20B 1850cc, 1997cc Inline 4
