OBP silicone tee (with 25 mm tube connection)
Reference:
OBP-SH-T.N.60
Supplier Ref.:
OBPSH-T-60

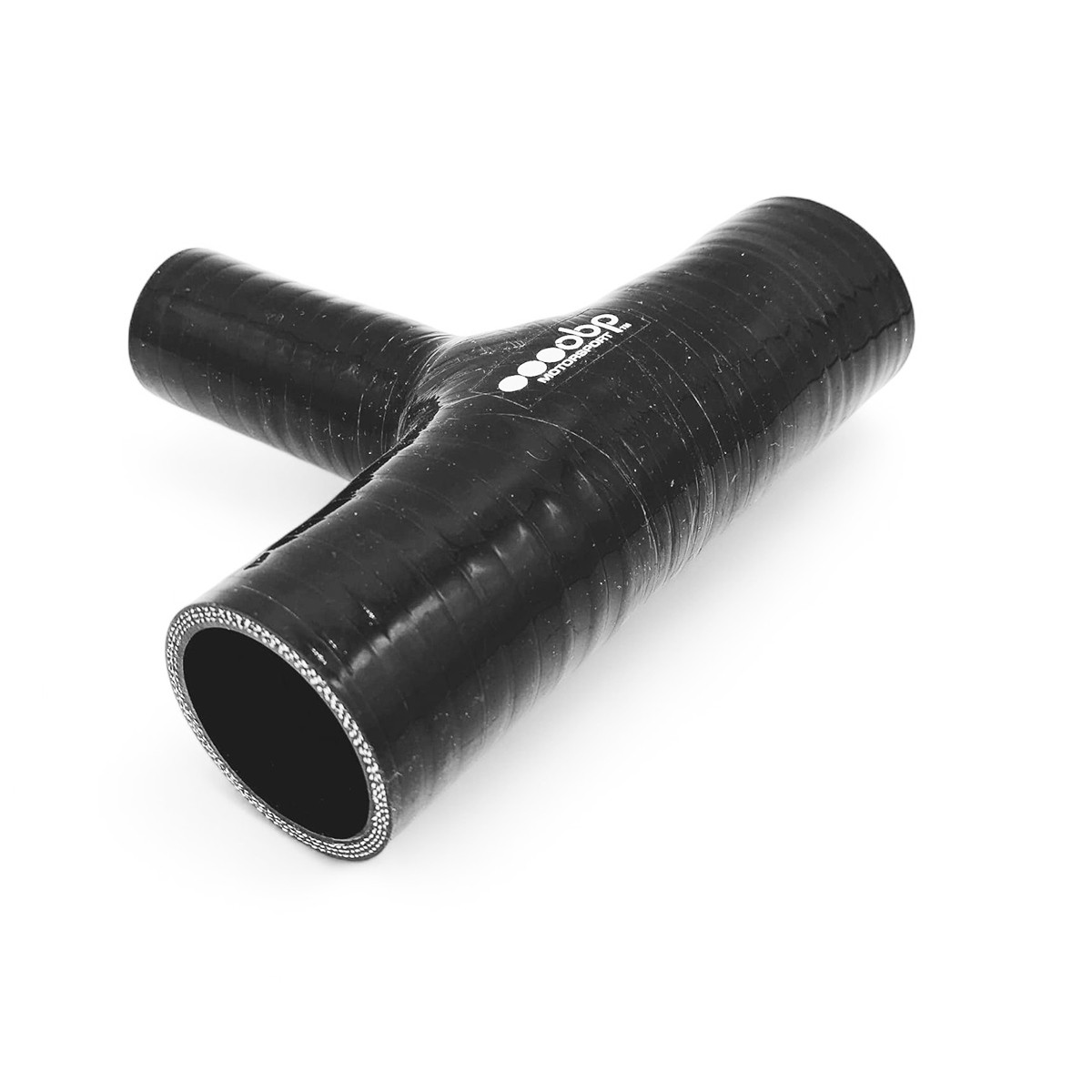

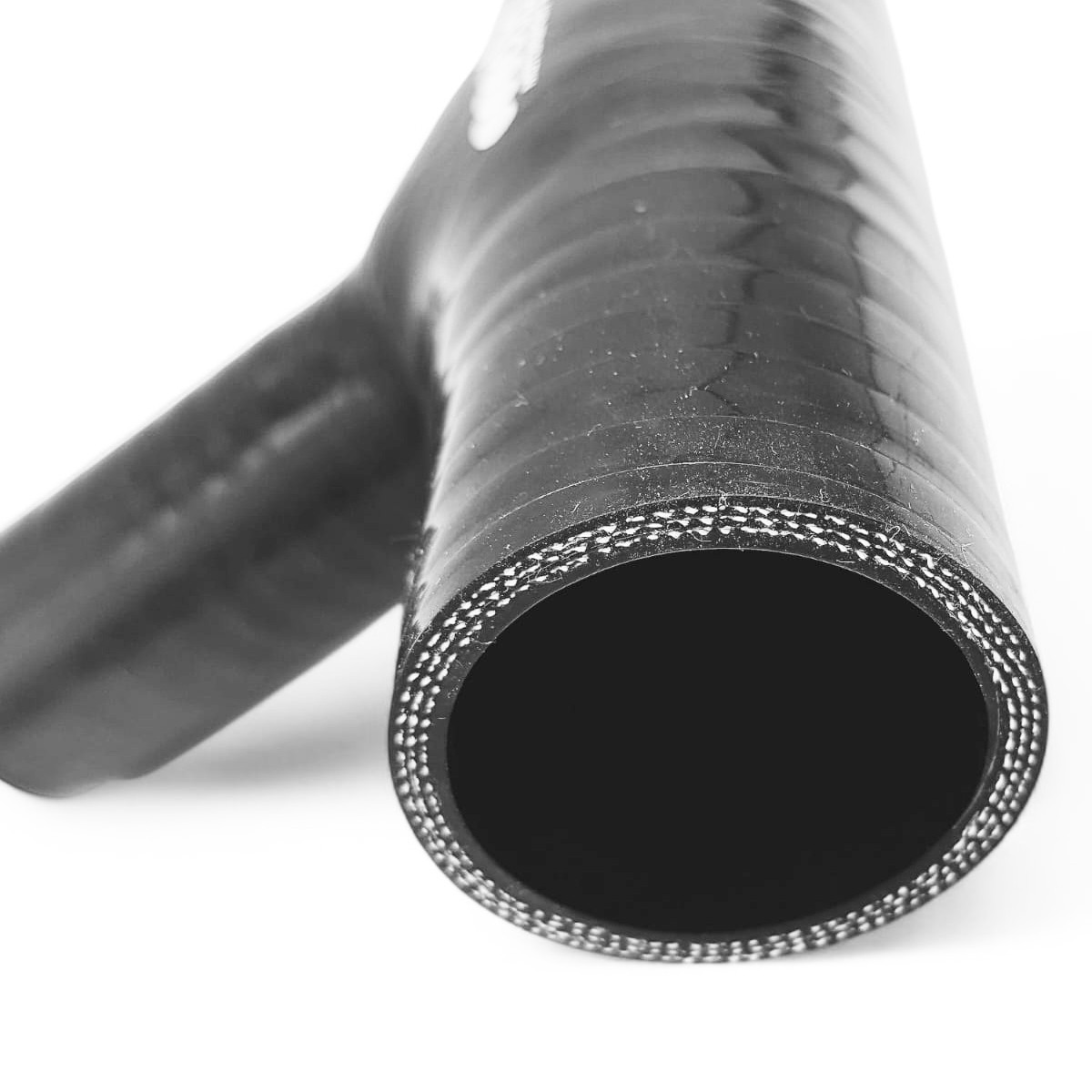

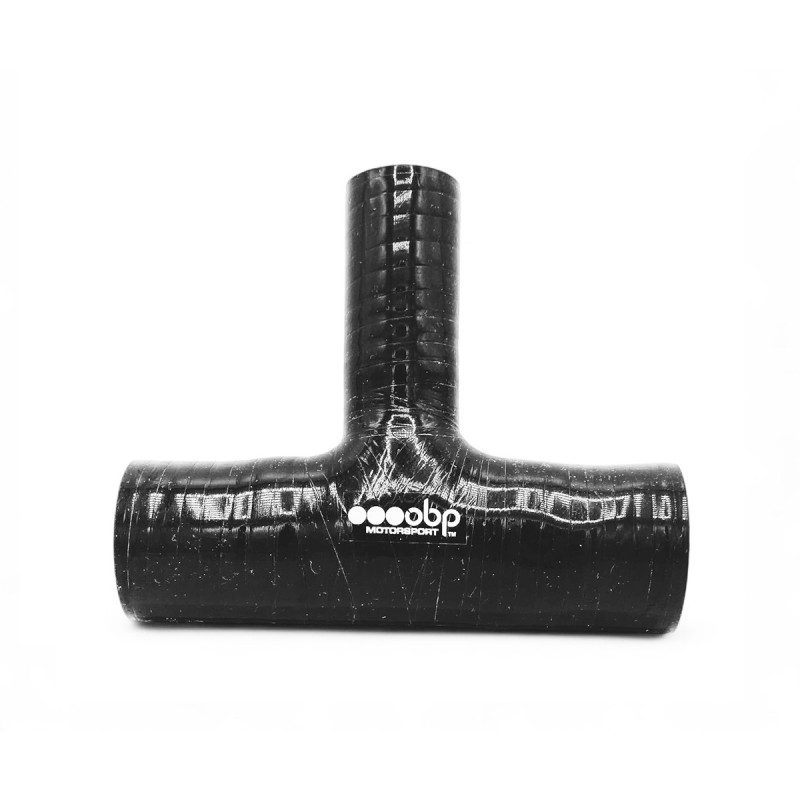

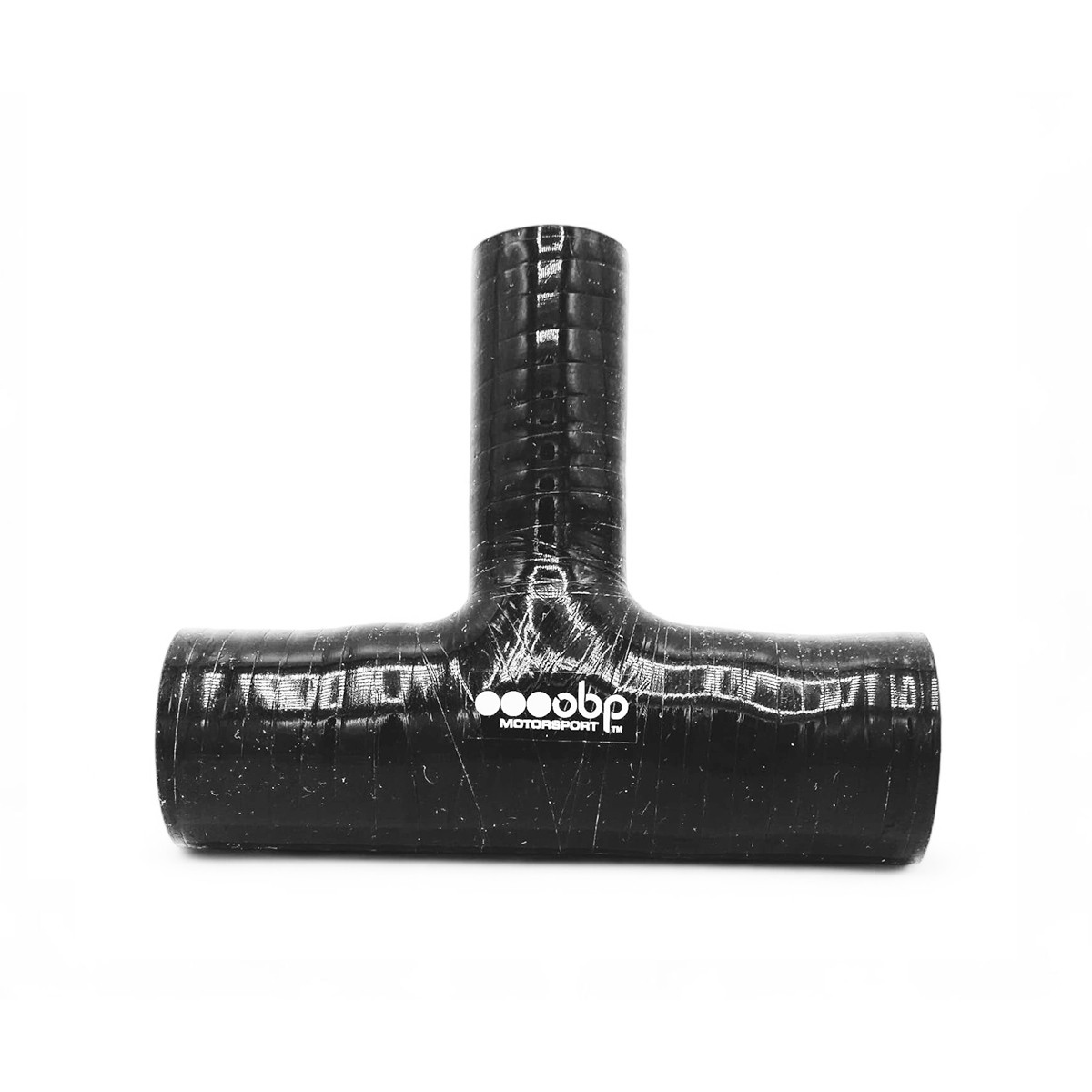

OBP Motorsport Silicone T-Connector
The OBP Motorsport Silicone T-Connector is designed for air and fluid transfer applications, providing a reliable solution for cooling or intercooling line bypassing. Designed for both motorsports and high-performance road vehicles, this T-connector offers consistent performance, strength and durability in extreme conditions.
Manufactured from premium reinforced silicone, each T-connector meets or exceeds SAE J20 standards, ensuring exceptional heat resistance, pressure tolerance and long-term reliability.
Specifications:
- Internal diameter: 38 - 76 mm
- Bore (ID): 150mm long main bore + 25mm diameter x 30mm long end piece
- Material: Reinforced silicone
- Operating temperature range: -60°C to +220°C
- Burst pressure: 15 - 18 Bar (depending on the number of plies)
- Reinforcement: varies depending on the construction of the plies for increased durability
- Compliance: meets or exceeds SAE J20 standards
Ideal for cooling line branches or intercooling hoses, the OBP Motorsport silicone T-fitting offers a professional, high-performance solution for demanding applications.
Available in black or blue
| Ø INTERNAL | PLY | THICKNESS (MM) | WORKING PRESSURE (BAR) | BURST PRESSURE (BAR) | LENGTH (MM) | WEIGHT (KG) |
|---|---|---|---|---|---|---|
| 38 | 4 | 5 | 6 | 15 | 150 x 30 | 0,154 |
| 51 | 4 | 5 | 6 | 18 | 150 x 30 | 0,178 |
| 60 | 4 | 5 | 5 | 15 | 150 x 30 | 0,255 |
| 63 | 4 | 5 | 5 | 15 | 150 x 30 | 0,287 |
| 70 | 4 | 5 | 5 | 15 | 150 x 30 | 0,282 |
| 76 | 4 | 5 | 5 | 15 | 150 x 30 | 0,291 |
-
Main materialSilicone
-
Length in mm150
-
Main colorBlack
Blue
