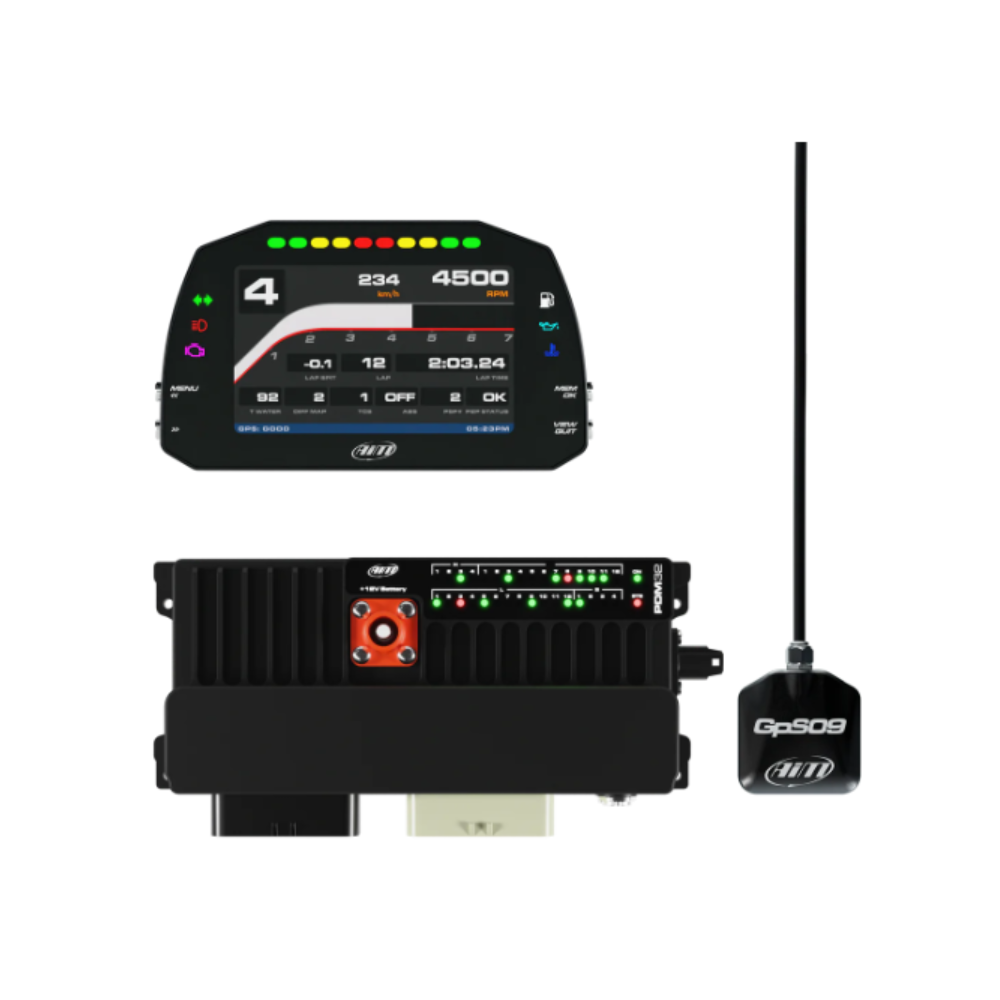

AIM PDM 32 data logger kit with 5" Road display

Give your vehicle state-of-the-art performance with the AIM PDM 32 data logger kit, designed for on-road use.

With 14 configurable inputs, including 8 analog and 4 digital, this system gives you total control over your vehicle's data.

Enjoy variable power outputs, from 4 up to 20A for high power, up to 12 up to 15A for low power, and much more.

Featuring 32 RGB LEDs, an 800x480 pixel resolution display and 4GB of internal memory, this package gives you a clear and precise view of important data. With an IP65 waterproof rating, it's ready to take on the most demanding conditions on the road.

The AIM PDM 32 data logging kit is also equipped with AMP, Binder, Amphenol Surlock and Rosenberger connectors for maximum connectivity.

Available with standard 0.5m, 1.3m, 2m and 4m cables, as well as 2m and 4m roof versions.

Features :

• Inputs :
• 14 fully configurable, max. 500 Hz each :
• 8 analog/digital
• 4 digital inputs
• 2-speed input
• Power outputs :
• 4 up to 20 A (high power)
• 12 up to 15 A (low power)
• 12 up to 10 A (low bridge)
• 4 up to35 A (half-bridge)
• Protection: overvoltage, undervoltage, overcurrent, overtemperature
• Maximum total current: 120 A
• LEDs: 32 RGB LEDs + 1 PDM ON + 1 PDM STS (Status)
• Lin bus: 1
• CAN connections: 3
• Internal platform: 3-axis accelerometer ±5G + 3-axis gyroscope + 3-axis magnetometer
• Remote display connection: 1 AiM stream output
• Connectors: 2 AMP connectors + 2 Binder connectors + 1 Amphenol Surlok connector + 1 Rosenberger connector
• Internal memory: 4 GB
• External modules: GPS Module, Channel Expansion, TC Hub, Lambda Controller, SmartyCam HD, Formula Handwheel, Remote I/O Pushbutton Module
• External analog camera input: 2
• Body: Anodized aluminum
• Waterproofing: IP65
• Dimensions: 234.5 x 94.6 x 49.5 mm 234.5 x 94.6 x 49.5 mm
• Weight: 761g
• PDM Dash 5" TFT Display :
• Display: 5" TFT
• Resolution: 800 x 480 pixels
• Contrast: 600:1
• Brightness: 700cd/m2 - 1,100 Lumen
• Ambient light sensor : Yes
• Device status information LEDs: 5
• Gear change illumination LED: 10
• Body: Anodized aluminum
• Push buttons: Metal
• Connectors: LVDS Link 4 pins Rosenberger male connector
• Dimensions: 189.6 x 106.4 x 24.9mm 189.6 x 106.4 x 24.9 mm
• Weight: 640g
• Power consumption: 150 mA
• Water resistance: IP65
• GPS module :
• 5-pin Binder connection
• Dimensions: 64.8 x 53.2 x 19.7 mm 64.8 x 53.2 x 19.7 mm
• Weight: 60.5 g
