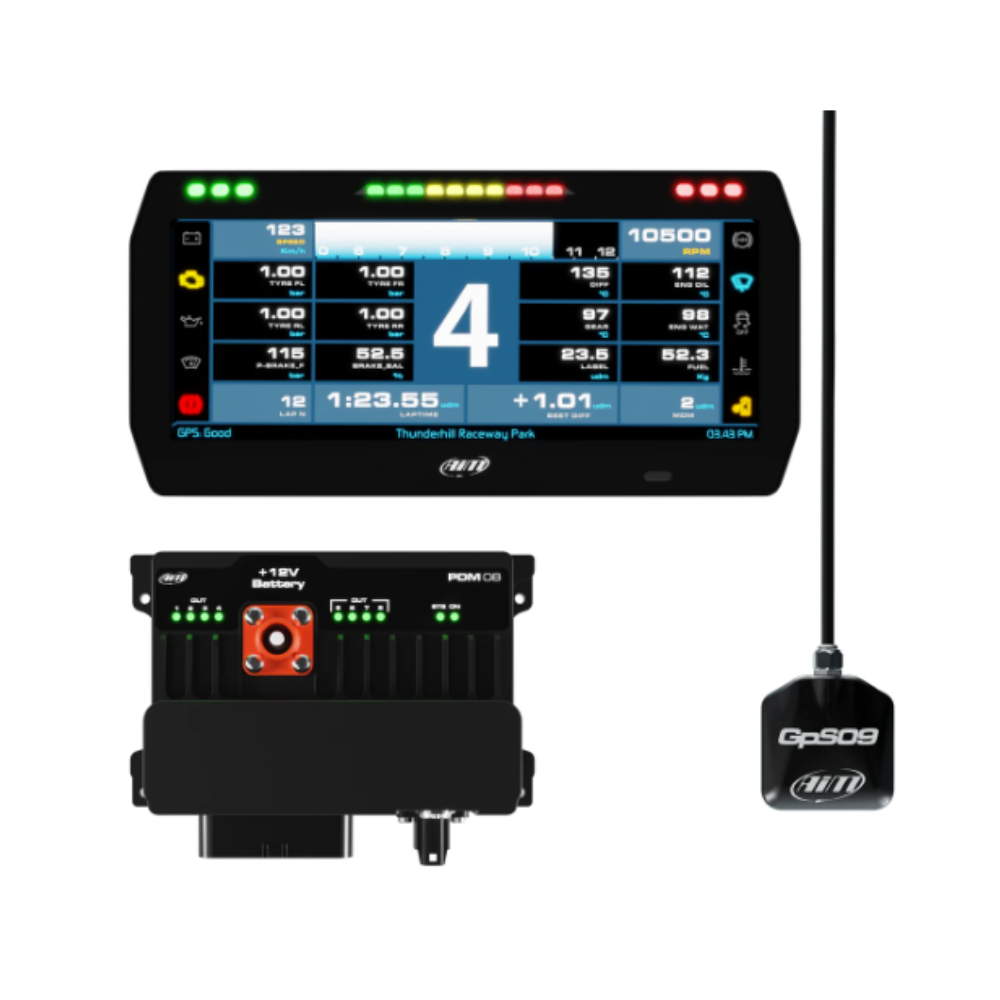

AIM PDM 8 data logger kit with 10" Race display

Discover the power of the AIM PDM 8 data logger kit, equipped with a 10" display and designed for the most demanding motor racing. With six configurable inputs and three CAN connections, this system offers versatile integration with other electronic components in your vehicle.

With an IP65 waterproof rating, this kit is designed to withstand the toughest conditions on the track, ensuring reliable performance in all situations. Its high-resolution 1280x480 pixel display offers a clear, detailed visualization of race data, enabling you to make informed decisions in real time.

With a weight of 1000g and compact dimensions of 178x135x26.2mm, this kit is easy to install and won't compromise your vehicle's handling.

Cable available in standard versions: 0.5m, 1.3m, 2m and 4m, as well as a roof version: 2m and 4m.

Features :

• LEDs: 8 RGB LEDs + 1 PDM ON + 1 PDM STS (status)
• Inputs:
• Six fully configurable inputs, max. 500 Hz each
• Pullup + 12V, + 5V, analog/digital
• Pull down
• Speed IN: 2
• Power outputs :
• 1 with series diode up to 20 A
• 1 up to 25 A
• 6 up to 15 A
• Protection against: overvoltage, undervoltage, undercurrent, overtemperature
• All outputs have an internal freewheeling diode.
• Maximum total current: 100 A
• Lin bus: 1
• CAN connections: 3
• Internal platform: 3-axis accelerometer ±5G + 3-axis gyroscope + 3-axis magnetometer
• Internal memory: 4 GB
• External modules: GPS Module, Channel Expansion, TC Hub, Lambda Controller, SmartyCam HD, Formula Handwheel, Remote I/O Pushbutton Module
• External analog camera input: NO
• Connectors: 1 AMP connector + 1 Amphenol Surlok connector + 1 Rosenberger connector
• Remote display connection: 1 AiM stream output
• Body: Anodized aluminum
• Dimensions: 161 x 100.6 x 50.6 mm 161 x 100.6 x 50.6 mm
• Weight: 500g
• Water resistance: IP65
• AiM PDM Dash 10
• Display: 10" TFT
• Resolution: 1280 x 480 pixels
• Contrast: 1,100:1
• Brightness: 800cd/m2
• Ambient light sensor : Yes
• Display status LEDs: 6
• Speed change indicator lights: 10
• Body: Anodized aluminum
• Push-buttons: Metal
• Connectors: LVDS Link 4-pin Rosenberger male
• Dimensions: 278.0 x 135.0 x 26.2 mm : 278.0 x 135.0 x 26.2 mm
• Weight : 1000g
• Power consumption: 250 mA
• Water resistance: IP65
• GPS module
• 5-pin Binder connection
• Dimensions: 64.8 x 53.2 x 19.7 mm 64.8 x 53.2 x 19.7 mm
• Weight: 60.5 g
