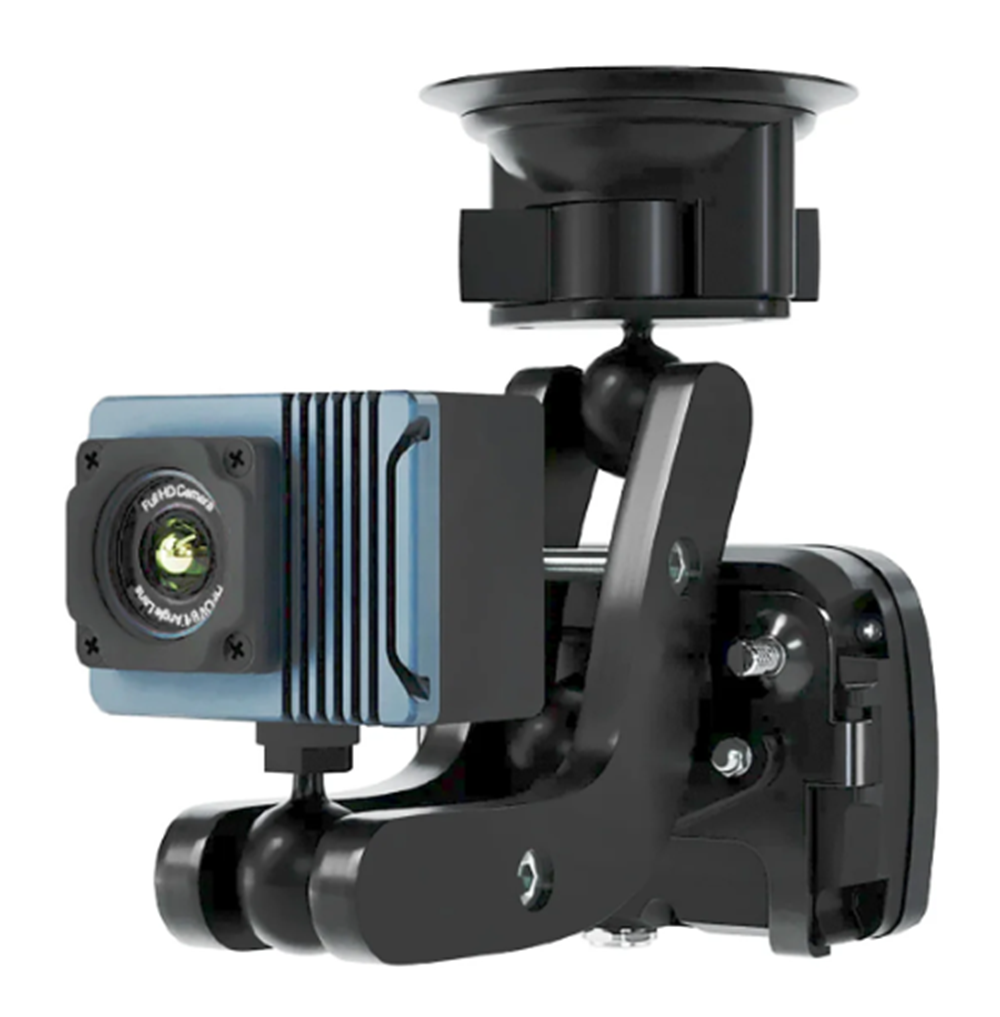

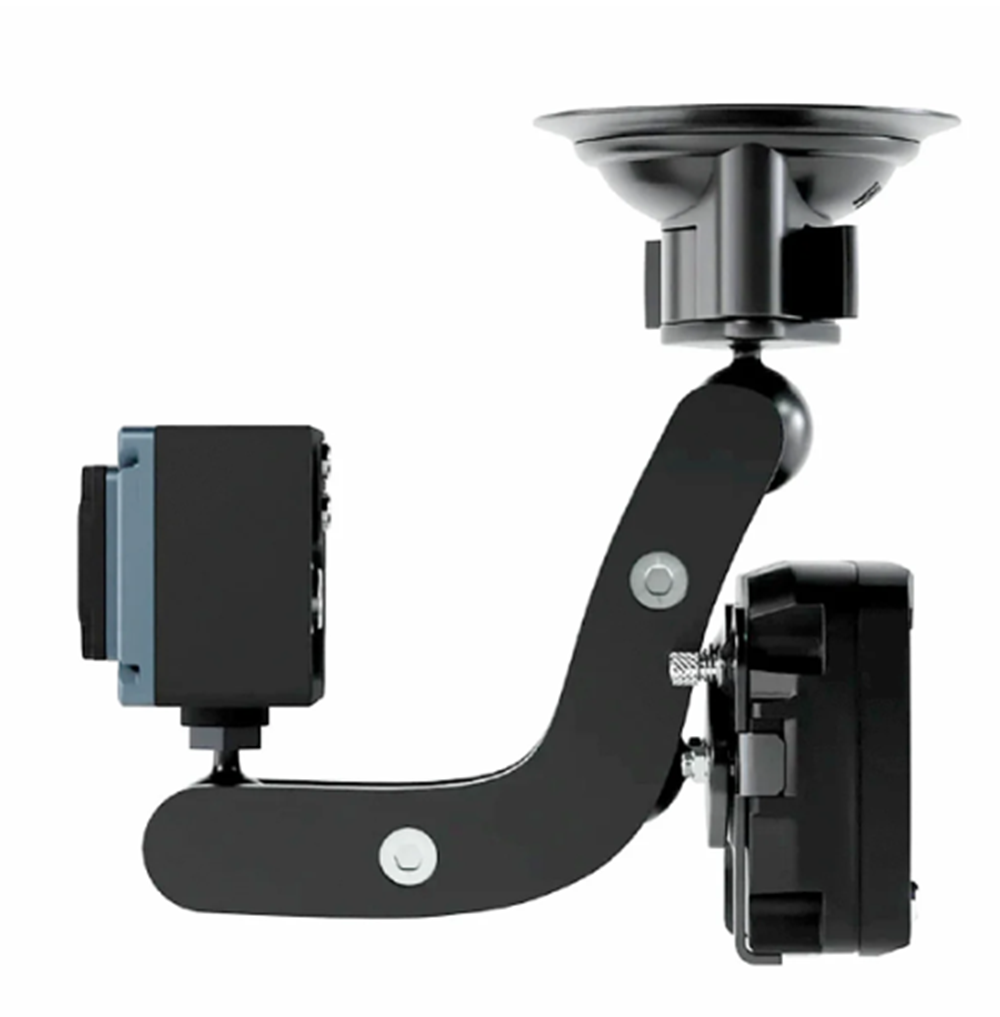

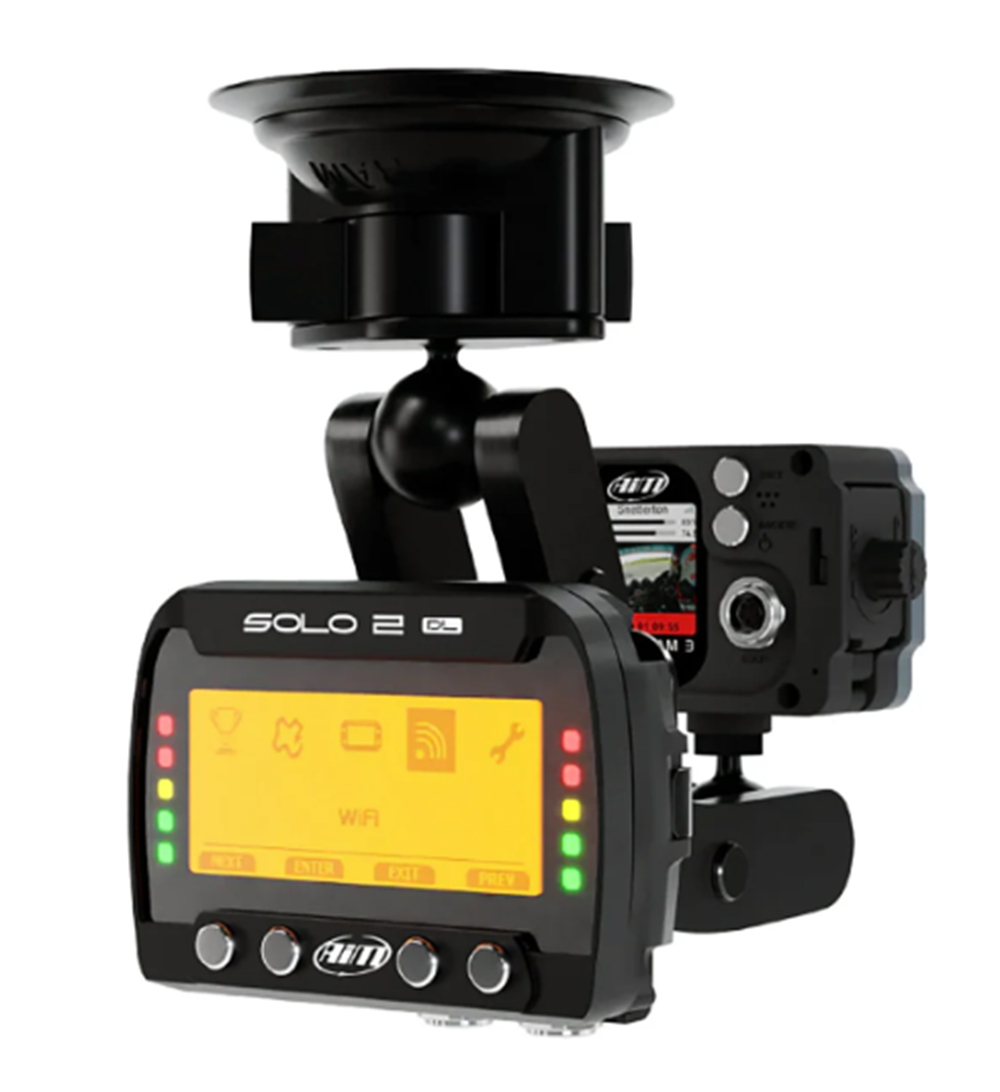

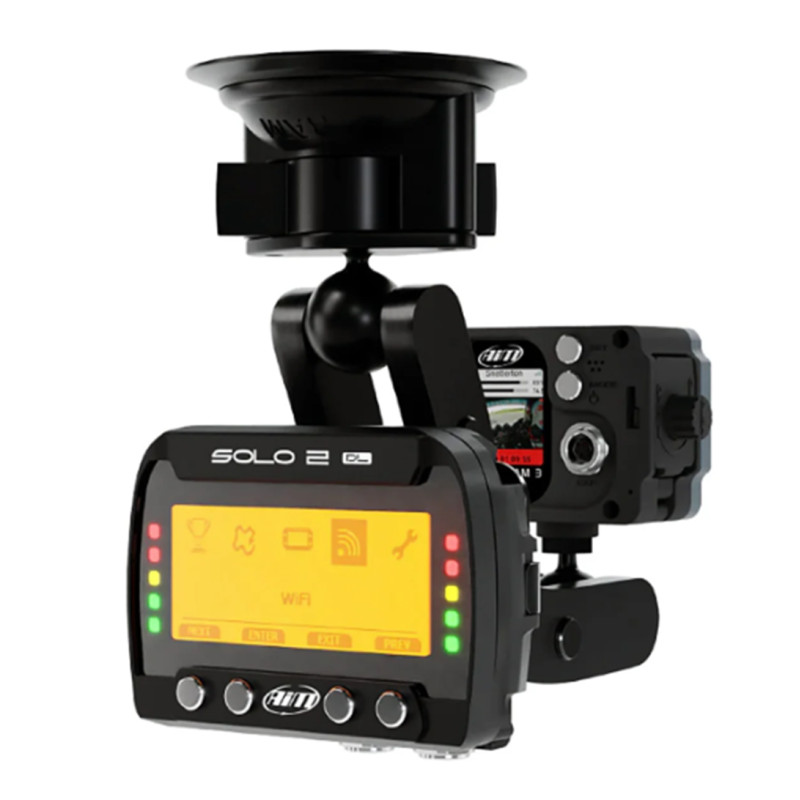

AIM SmartyCam 3 Sport kit with Solo 2 DL and double bracket

AIM SmartyCam 3 Sport kit with Solo 2 DL and double bracket

Trackday Kit with dual mount for Smartycam 3 Sport and Solo 2 DL; the ideal way to record video to enhance driver and vehicle performance.

Capture every torque of your track sessions and track your performance in real time with this Aim Trackday Kit. Combining Aim's 3 Sport smartycam , their Solo 2 DL Dashboard and a dual mount , this kit will be perfect for keen drivers looking to analyse and improve their performance.

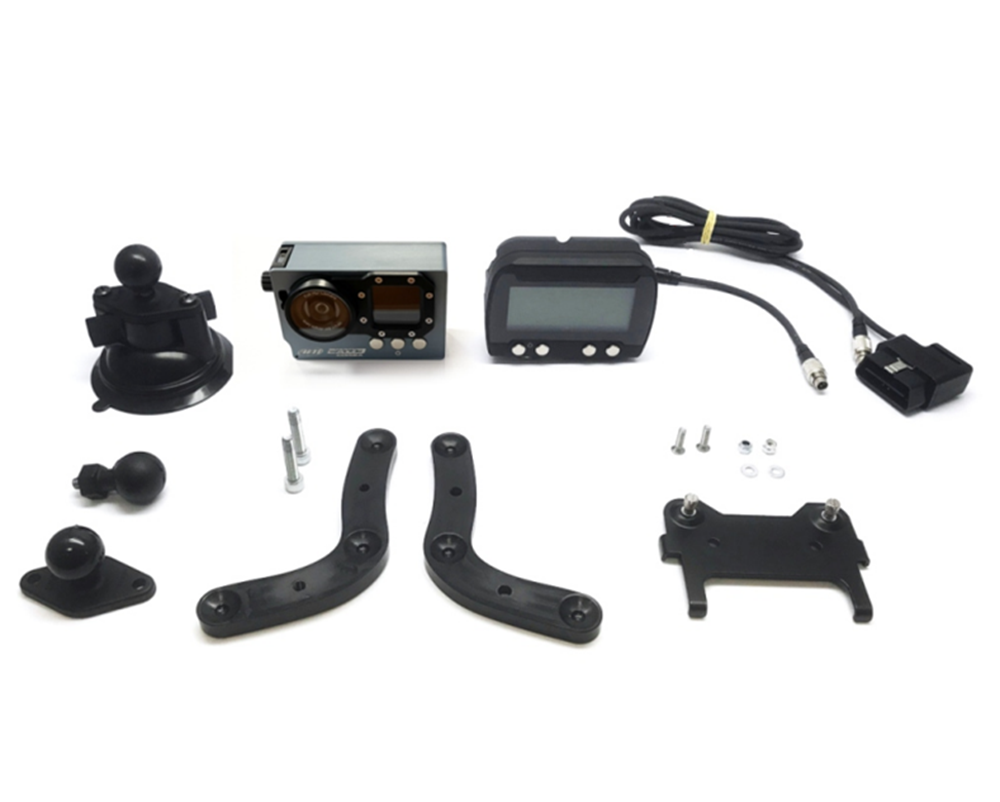

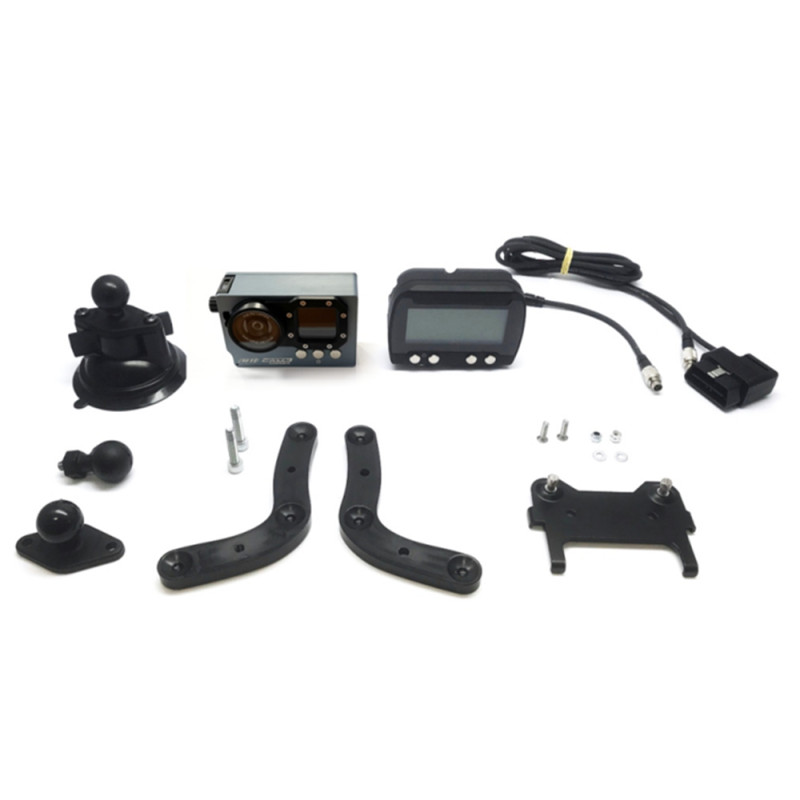

The kit includes :

- Smartycam 3 Sport

- Dashboard Solo 2 DL

- Double Mount

The kit is available with 87° angle lens and 67° angle lens!

SmartyCam 3 Sport

The SmartyCam 3 Sport camera has been designed for motorsport with a single objective: to provide superb video including all the information you need. This camera superimposes all the data from the global positioning system and AiM recorders connected to your ECU.

Features :

- CMOS pick-up to avoid wave effects

- Great graphical control with a wide choice of layouts

- Full HD camera with 1920 x 1080 resolution at 30 FPS

- Auto start and stop recording for maximum convenience

- Waterproof to withstand the worst environments (water, dust, temperature)

- Auto track selection to pattern the track, calculate number of revolutions, lap times and rolling times

- Sapphire front protection window resistant to high-speed impacts (stones, insects, dust)

- Video and data are synchronised in the same MP4 file

- SmartyCam 3 lens field of view: 67º or 84º.

- If you don't have enough MP4 data, you can import the video and data and the software will automatically synchromesh (track position, video image, data on graph)

Solo 2 DL Dashboard

Make the most of your days on the circuit with this digital dashboard designed for demanding drivers. Compact, intuitive and high-performance, it provides you with all the essential data in real time to analyse and improve your performance on the track.

Features:

- Resolution: 238 x 99 pixels

- Up to 5 freely configurable pages

- 7 configurable RGB colours

- 10 configurable RGB LEDs (revolutions per minute LEDs)

- Integrated track database

- Memory: 4GB

- Dimensions: 98.0x73.7x30.2 mm

- WIFI connections

The Solo 2 DL Dashboard cage includes :

-Solo 2 DL

- power cable with mains adapter

- mounting bracket with screws

- user manual

- RaceStudio 3 software, downloadable free of charge from the AiM website,

When it comes to cables, you can choose between :

• - CAN/K-Line/external power cable with OBDII connector

• - CAN/RS232 external power cable

• - RPM/External power cable (if your vehicle has no ECU)
