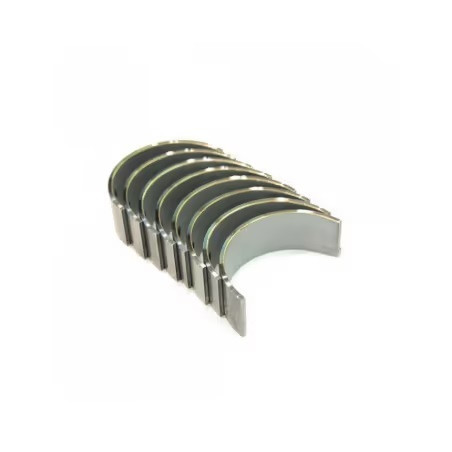

Connecting Rod Bushings (Size .030) Standard ACL for MINI (1275cc Inline 4 Before and after 1983)
ACL Duraglide bushes are designed to replace the original ones on your vehicle. These OEM quality bushes are close to the original bushes, allowing perfect application to your engine.
The ACL-4B2206-030 is specially designed for MINI engines (1275cc Inline 4) offering perfect tolerance for a precise connecting rod fit.
These bushes have a rib of 0.030" i.e. an additional thickness of 0.762 mm.
Specifications :
Part number : ACL-4B2206-030
Tolerance : 0.030" or 0.762 mm for optimum precisiona
Material : Duraglide (OEM quality)
Recommended use: Standard / Replacement for original bearings
Benefits : Precise fit and increased durability
Dimensions:
Maximum overall length: 21.59 mm
Minimum axle size: 44.460 mm
Maximum axle size: 44.473 mm
Minimum tunnel size: 48.146 mm
Maximum tunnel size: 48.158 mm
Max wall to crown: 1,822 mm
Minimum vertical oil clearance:
Max vertical oil clearance:
Compatibility:
MINI
- 1275cc Inline 4 (Up to 1983)
- 1275cc Inline 4 (From 1983)
Each set of pads is sold sealed by the manufacturer to guarantee the protection, quality, and authenticity of the product. It is essential to check the references and dimensions before opening.
In order to maintain optimal reliability for all our customers, returns are only possible for products whose plastic packaging has not been opened.
