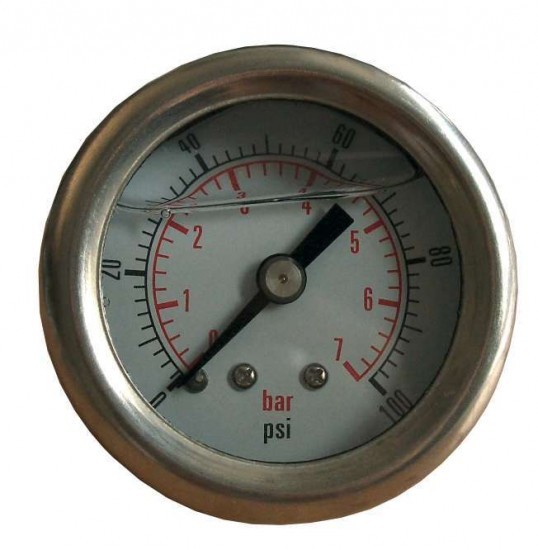

Sytec Fuel Pressure Gauge 0 to 7 bar

The Sytec 0 to 7 bar fuel pressure gauge is designed for testing fuel injection systems. Its dual-scale dial (in bar and psi) allows for pressure readings during diagnostics or when adjusting a fuel pressure controller.

Its glycerin-filled design provides springing for needle movement caused by vibrations and pressure pulsations, making readings easier. The connection is made at the back of the gauge via a 1/8 NPTF thread to a pressure tap or compatible adapter.

This gauge is intended for diagnostic use only: it must not remain permanently installed in the fuel system.

Technical Specifications

• Brand: Sytec
• Manufacturer Part Number: FPG002
• Type: Glycerin-filled fuel pressure gauge
• Application: fuel injection systems
• Measuring range: 0 to 7 bar / 0 to 100 psi
• Scale: dual scale (bar and psi)
• Accuracy: ± 2.5% of full scale
• Position of the connection: rear
• Thread: 1/8 NPTF
• Declared compliance: BS EN 837-1
• Application: Temporary monitoring only; not for permanent installation

Compatibility and Precautions for Use

The Sytec FPG002 is intended for fuel injection systems. It is not suitable for testing carburetor fuel systems: for these low-pressure applications, use the Sytec FPG001 pressure gauge.

Mounting requires a pressure tap or adapter compatible with the 1/8 NPTF thread. Connect and disconnect the gauge on a depressurized system, then check for leaks before testing. After use, remove the gauge and reseal the system.
