GOODRIDGE

Female Coupling Goodridge 150° Alu 3/14x16 JIC

Delivery time

3 to 9 days + than 10 days + than 20 days + than 30 days

Description

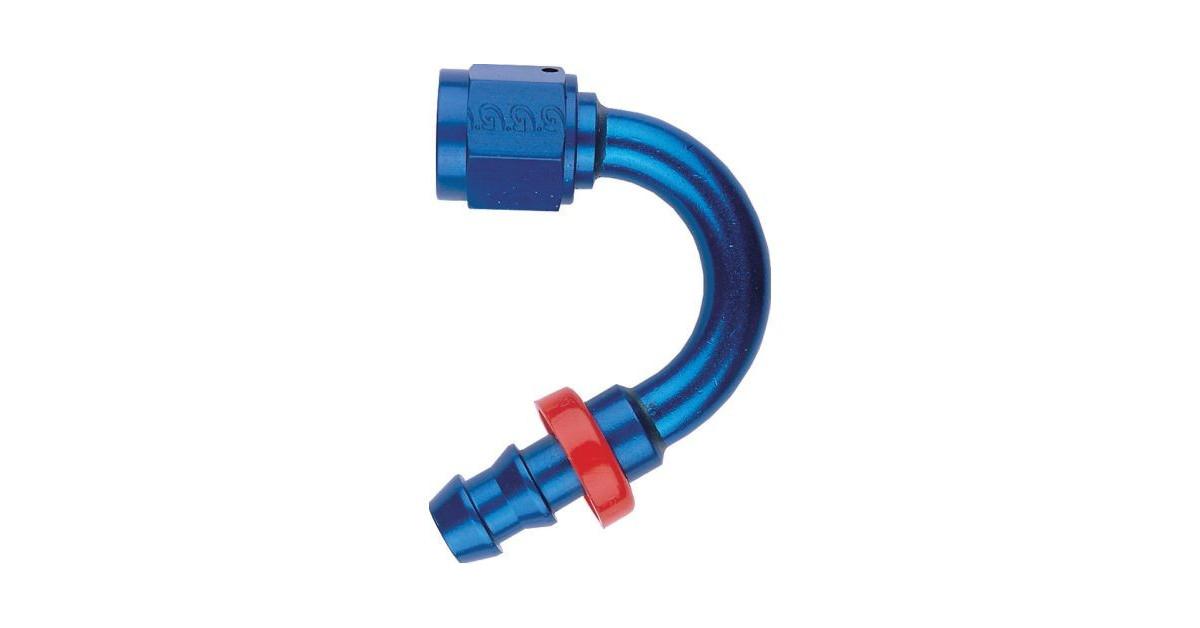

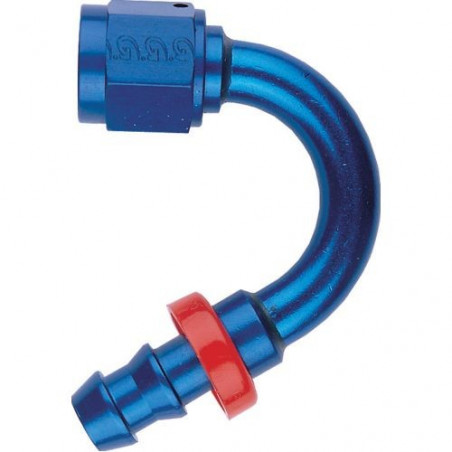

Female Coupling Goodridge 150° Alu 3/14x16 JIC


The Goodridge 536-15008 coupling is a 150° angled female end with a concave surface, designed for 536-08 hoses from the Goodridge range. Made of blue anodised aluminium, it provides excellent resistance to pressure, corrosion and external damage, while guaranteeing a smooth and secure passage.

This type of coupling is particularly suitable for configurations where a wide angle is required, in particular to bypass mechanical elements while maintaining optimal fluid routing. Its ‘Sure Lock’ grooved end piece is specifically designed to offer a reliable attachment with 536 hoses, while allowing precise adjustment once the hose is fitted.


Characteristics:

Reference: 536-15008

Type: 150° female elbow coupling – concave seat

Angle: 150°

For hose: 536-08 series

Thread: JIC 3/4 x 16

Material: anodised aluminium

Finish: blue

Applications: petrol, oil, air, water, cooling liquid

Compatibility: Goodridge 536 & 536B hoses

Fitting: non-detachable coupling - must be cut to remove


Products designed to adapt vehicles for competition use may prohibit them from being driven on roads open to public traffic, insofar as they significantly modify the characteristics of the vehicles as described in the type-approval report issued by the mines department: noise, pollution, maximum speed, tire size, etc.

Data sheet

JIC Thread :
3/4 x 16
Dash Hoses :
08
Angle in ° :
150
Series :
536 Gasoline / Oil
€42.20 TTC
Tax included
G-536-15008
Quantity
This product is not available at the moment, it will be ordered specifically from our supplier for you.
