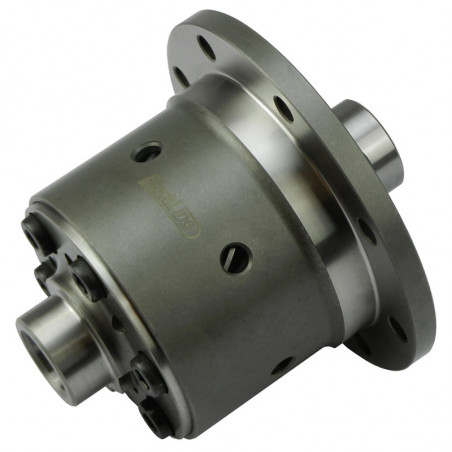

Bratex Differential Opel Ascona 1970-1975 / Manta 1970-1975

This Bratex limited slip differential (helical gearing) is made from8620 alloysteel and is compatible with Opel Ascona, Manta and Kadett C models.

It is fitted directly in place of the original differential.

Bratex locking systems are designed to have a 5:1 torque split. This means that if one wheel loses drive, the wheel with the most grip can receive up to 5 times more torque than the wheel that is slipping.

Bratex limited slip differentials operate progressively less abruptly than a disc differential, their setting varies continuously according to the drop in drive, they use no discs (no wear) and they are very gentle on the original drive while retaining very good efficiency.

Note: For torque ratios 3.67, 3.79, 4.1, and 4.45. Not compatible with torque ratios 3.44, 3.18, and 3.88!

Features of this self-locking system:

• Smooth and progressive engagement

• Minimal and easy maintenance

• Equal revolutions per minute at both wheels

• Torque distributed according to the drive

• No disc wear (no dismantling)


Quaife equivalent: QDF4B

Vehicle affectation:

Opel Ascona (1970-1975)

Opel Manta (1970-1975)

Opel Kadett C
