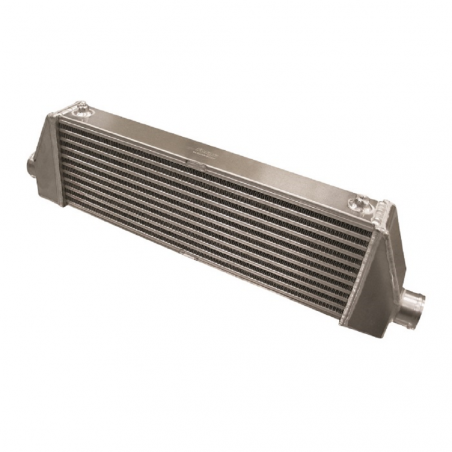

FORGE universal intercooler Type 08 - 2 low side connections - 680x80x200mm

FORGE Universal Alloy Intercooler Series 100 - 60 mm thick core

Forced induction (intake air compression) produces heat. The heat can reduce power, negating some of the benefits of forced induction. The incorporation of an intercooler greatly reduces the negative effects of high intake air temperatures. FORGE Motorsport's range of universal intercoolers offers a wide selection of the highest quality configurations, handcrafted and welded by highly skilled craftsmen, offering excellent thermal properties, flow characteristics, minimal pressure drop and high volumetric efficiency.

This universal FORGE range can provide the perfect solution for vehicles where no specific kit exists yet. A good starting point is to determine the physical space available to mount an intercooler and use the dimension tables to check what will fit. Then, by looking at the variations in type (position of connecting pipes, proposed diameters and type of fixing to the intercooler), decide how the pipes should be routed and connected. Consideration should also be given to how the intercooler will be fixed or mounted. In almost all cases, when using a universal intercooler, the installer must have an appropriate level of technical competence.

100 Series Universal
Type 04: 2 side connections centred
Type 05: 2 top connections
Type 06: 2 front centred connections
Type 07: 1 front and 1 side centred connection
Type 08 : 2 low side connections
Type 09 : 1 low side and 1 high side connection

Core dimensions - L x W x H
Type 04/05/06/07/08/09: 500 x 60 x 175mm

Overall dimensions - L x W x H
Type 04 : 680 x 80 x 200mm
Type 05 : 650 x 80 x 223mm
Type 06 : 650 x 115 x 200mm
Type 07 : 665 x 115 x 200mm
Type 08: 680 x 80 x 200mm
Type 09: 680 x 80 x 200mm

Please select the diameter (outer diameter of the tubes): 51mm, 57mm, 63.5mm
and the type of fixings: M8 threaded or brackets.
