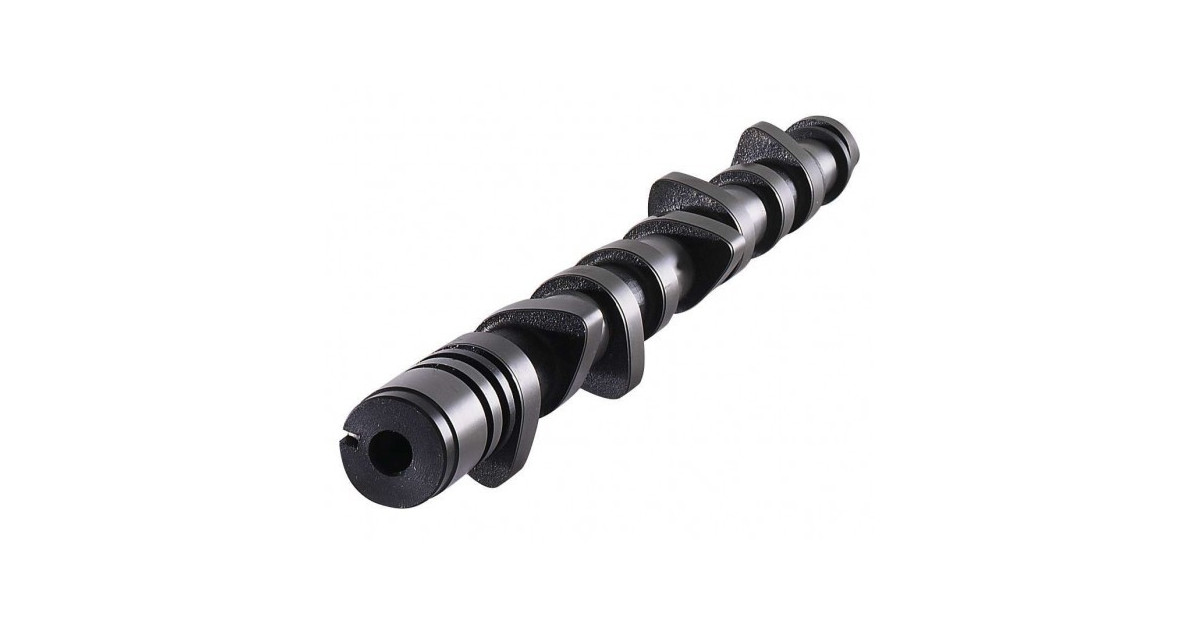

Cat Cams camshaft Peugeot 206 1.6 16V TU5JP4 engine 286°

The Camshaft is a masterpiece for the engine, it is one upgrade that can massively increase the performances of your favorite car. When upgrading the engine, two parameters of the camshaft can be changed : the duration of valve opening and the valve lift. By increasing the valve lift, you increase the air-fuel flow, so for the same opening time, you capable to increase the volume of air-fuel mixture in the cylinder, that will increase the power in high revs. By increasing the duration( measure in degree ) , you increase the period while both exhaust and intake valve are open, the exhaust gases will help the fresh gases to enter in the cylinder by creating an suction effect. It will increase the air/fuel flow and the power.

CATCAMS is a manufacturer of engine metal parts, and is famous for its Camshaft range. Catcams analyses every engine for which they design parts. They produce steel casted parts as well as billet steel shaped by CNC. Every part is designed, produced, heat treated and check with the highest care possible. CATCAMS offers several camshafts in order to match every step of upgrade or applications.

Duration at 0,1mm (Intake / Exhaust) : 286°/279°
Duration at 1mm (intake / exhaust) : 257°/250°
Max valve lift (intake / exhaust) : 12.00mm/11.50mm
Valve lift at TDC (intake / exhaust) : 3.95mm/3.50mm
Cam wheels: CC-TPE001
Follower: CC-CC018-1
Upper retainer: CC-99311-16
Lower retainer: OEM
Exterior spring: CC-902-0015
Interior spring: /
