Description

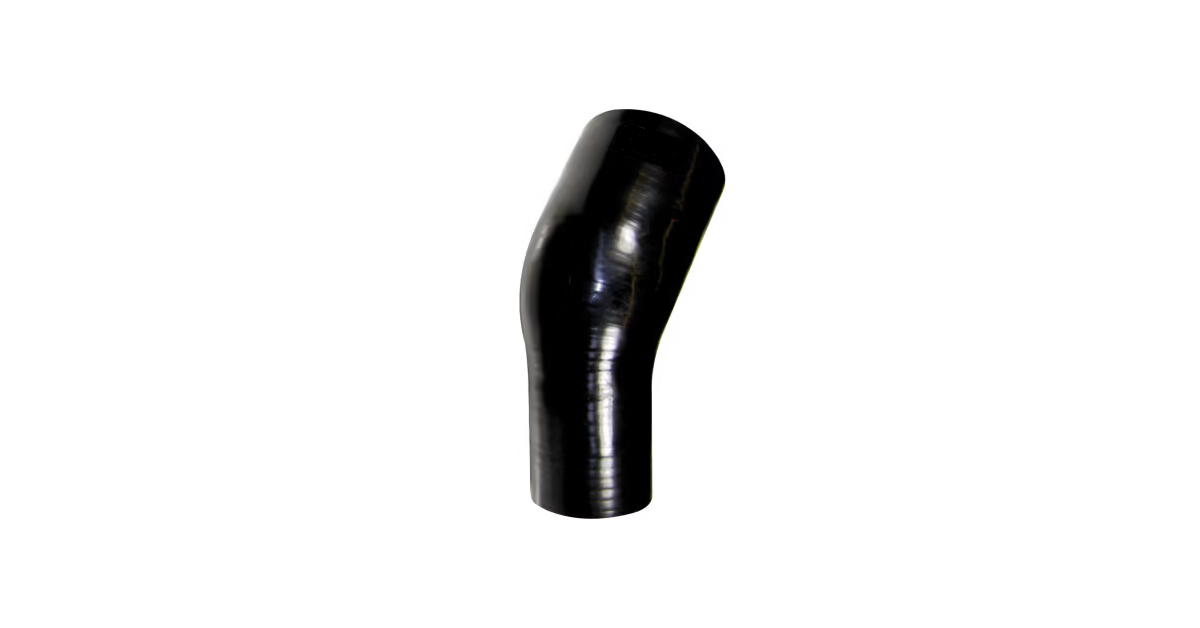

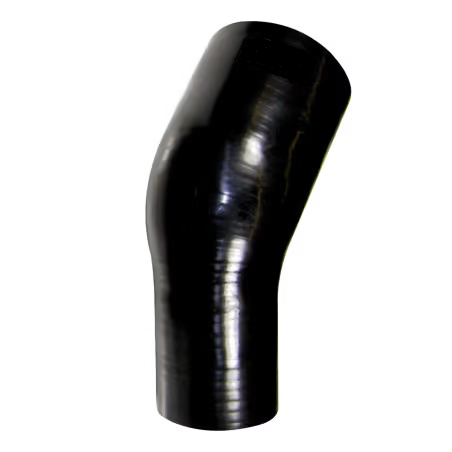

OBP Motorsport 45° Silicone Reducer

The OBP Motorsport 45° Silicone Reducer is designed for air and fluid transfer applications. It offers superior strength, flexibility and long-term reliability. Perfect for cooling systems, intercooler setups and custom builds, this hose works perfectly in both motorsports and high-performance road vehicles.

Made from premium reinforced silicone, each hose is designed to meet or exceed SAE J20 standards, offering exceptional resistance to heat, pressure and wear in harsh conditions.

Specifications:

  • Internal diameter: 13 - 76 mm
  • Angle: 45°
  • Leg length: 102 mm / 120 mm (depending on diameter)
  • Material: Reinforced silicone
  • Operating temperature range: -60 °C to +220 °C
  • Burst pressure: 15 - 24 Bar (depending on the number of folds)
  • Reinforcement: varies depending on the construction of the folds for increased durability
  • Compliance: meets or exceeds SAE J20 standards

Available in black or blue

Ø INTERNAL PLY THICKNESS (MM) WORKING PRESSURE (BAR) BURST PRESSURE (BAR) LENGTH (MM) WEIGHT (KG)
19-13 3 4 8 24 102x102 0,06
19-16 3 4 8 24 102x102 0,075
22-16 3 4 8 24 102x102 0,075
22-19 3 4 8 24 102x102 0,087
25-19 3 4 8 24 102x102 0,09
32-25 3 4 7 21 102x102 0,15
32-28 3 4 7 21 102x102 0,15
35-32 3 4 7 21 102x102 0,119
38-25 3 4 7 21 102x102 0,16
38-32 3 4 7 21 102x102 0,163
38-35 3 4 7 21 102x102 0,135
45-32 4 5 7 21 102x102 0,149
45-38 4 5 7 21 102x102 0,15
51-38 4 5 6 18 102x102 0,174
51-46 4 5 6 18 120x120 0,176
57-51 4 5 5 15 120x120 0,254
60-51 4 5 5 15 120x120 0,206
63-51 4 5 5 15 120x120 0,242
76-51 4 5 5 15 120x120 0,27
76-60 4 5 5 15 120x120 0,291
76-63 4 5 5 15 120x120 0,31

Data sheet

Angle in ° :
45
Main material :
Silicone
Length in mm :
102
Main color :
Black
Blue
€15.10 TTC
Tax included
OBP-SH-R45.N.3832
OBP45R-3832
